有名なブランドプレーンスクリーン印刷機
単価: USD 7750 / Set/Sets
Min.Order |
単価 |
1 Set/Sets |
USD 7750 / Set/Sets |
お支払い方法の種類: L/C,T/T
Terms of Trade: FOB,CIF
最小注文数: 1
単価: USD
モデル:S-900PV
印刷版の種類: スクリーン印刷機
該当する業界: フード&ビバレッジファクトリー, エネルギーと鉱業, 機械修理店, 工事, 印刷店
保証対象外のサービス: ビデオテクニカルサポート, オンラインサポート, スペアパーツ, フィールドメンテナンスおよび修理サービス
ローカルサービスを提供する場所(海外のサービスアウトレットがある国): イタリア, パキスタン, ケニア, 南アフリカ, カザフスタン, 韓国, メキシコ, ドイツ
ショールームの場所(海外にサンプルルームがある国): 七面鳥, ペルー, ケニア, 南アフリカ, カザフスタン, アルゼンチン, サウジアラビア
状態: 新着
原産地: 中国
自動化の程度: 半自動
色番号と表面番号の印刷: 単色
保証期間: 1年
コアセールスポイント: 高い正確性, 長い耐用年数
マーケティングタイプ: 普通品
機械試験レポート: 提供
ビデオ工場検査: 提供
コアコンポーネントの保証期間: 1年
コアコンポーネント: ポンプ, モーター
Type: Vertical Screen Printing Machine
Style: Screen-Process Printing Press
Structure: Platen Press
Color & Page: Single-Colour Printing Press
Application: Packaging Printing
Objects To Be Printed: Paper
包装: 木製ケース
生産高: 20 sets/month
ブランド: KC
輸送方法: Ocean,Land,Air
原産地: ドンググアン
についてのサポート: 20 sets/month
認証 : CE Certificate
HSコード: 8443192190
ポート: Shenzhen,Guangzhou,Hongkong
S-900PVフラットスクリーン印刷真空テーブル付きマシン//
使用法と文字
カタログ
詳細
データ
-
Fit printing soft and thin products such as paper, plastics film etc;
-
With vacuum working table ensure adsorbing object when printing;
-
Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
-
Also widely used in Glass plate, Machine panel screen printing;
-
With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
-
Suitable for printing sheet-fed adhesiving sticker;
-
Suitable for printing water transfer label and heat transfer label through diffrent process;
-
Max Printing area: 600*900mm;
-
High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.
S-900PV Flat screen printing machine with vacuum table //Application
-
Widely used in Glass printing field;
-
With UV curing machine, Can finish many UV special printing process for UV package industry.
-
Suitable for printing Mobile windows ;
-
Suitable for printing water transfer label and heat transfer label through diffrent process;
-

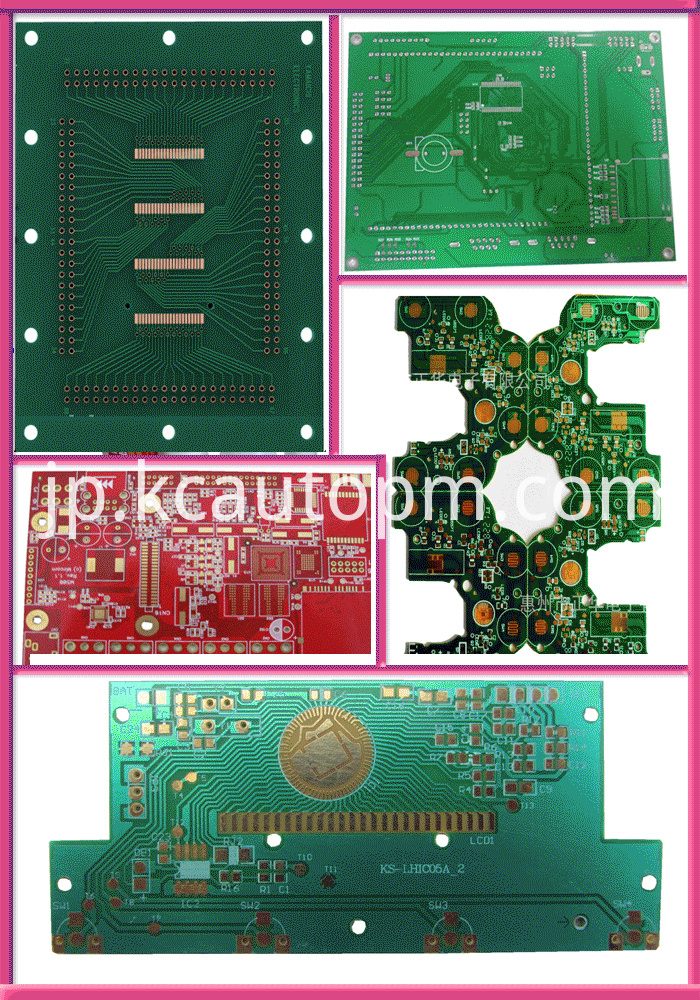

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit
S-900PV Flat screen printing Machine with vacuum table//Parameters
-
Printing high:50mm;
-
Air :45Liter/Min;
-
Working tavble dimension:700×1000mm;
-
Max Frame dimension: 950×1200mm;
-
Max printing area:600×900mm;
-
Max printing speed:800PCS/h ;
-
Max Stroke of up-and-down frame:200mm;
-
Max stroke of Squeegee:800mm;
-
Squeegee motor wattage: 200W;
-
Table Precision: +-0.03mm.
-
Package dimension: 1.41×1.26×1.83m
-
Gross weight: 389kg;
S-900PV Flat screen printing Machine with vacuum table //Advantage
-
High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
|
製品グループ : スクリーン印刷機 > 空気圧プレーンスクリーンプリンター
