自動ペンロッドペンシルホットフォイルスタンピングマシン

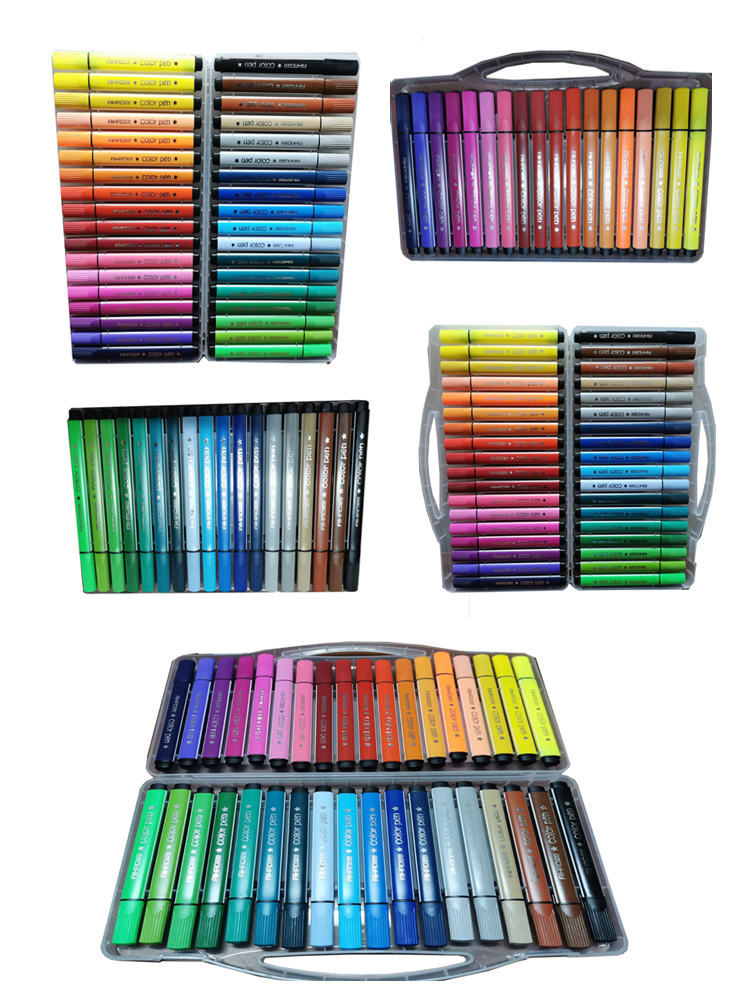

• Pen rod cylinder stamping ;  Suitable for all kinds of Small diameter cylinder ;
• Also for some of the rid plastics materials, wooden . diameter less than 25 mm gold foil.
• With automatic transmission is fully automatic stamping machine ;
• Automatic feeding ;
• Stable horizontal movement, the frequency motor control, stamping pressure evenly, stamping quality;
• Programmable logic controller fine-tuning various parameters, a good user interface


• Total consume Wattage: 1600W;
• Stamping temperature Rnange:20∼300℃;
• Compress air Pressure﹕5-8Bbar;
• Products Diameter:﹕(φ5~Φ25mm)×(20~250mm)
• Max stamping Speed:2000-3000pcs/h
• Outer dimension: 2300×2160×1200mm;
• Net weight(kg) : 420;
• Motor wattage: 500W;
• Power supply: 220V;
• Heater wattage: 800W IR.
• Works supply: 110V-220VPower supply;5-7Bar Compress air;
• Package size: 2770×1680×1790MM;
• Gross weight: 745kg
• CBM: 8.329
• H.S.Code: 8443198000
• Certificate: CE

Full automatically pen rod hot stamping machine //Advantage

• Vertical cylinder pressure mechanism design, a strong pressure;
• Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
• Stamping pressure, temperature, time stamping adjustable;
• Automatic foil feeding , Foil collection, and adjustment;
• Lift stamping head height adjustable;
• Bin storage, automatic Crawler installed for pen rod feeding;
• Automatic stamping process;
• The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
• With a square column design, the machine structure, solid and durable;
• Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
• Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
• IR heating, heating, high efficiency, stability and ensure stamping quality.
