ホットセラーCE承認TableTopスクリーンプリンターT-Slot WorkTableを使用して
単価: USD 1650 / Set/Sets
Min.Order |
単価 |
1 Set/Sets |
USD 1650 / Set/Sets |
お支払い方法の種類: L/C,T/T
Terms of Trade: FOB,CIF,EXW,FCA,CPT,CIP
最小注文数: 1
単価: USD
モデル:ST-3050PT
Type of printing plate: Screen Printer
Applicable industry: Hotels, Building Material Shops, Machinery Repair Shops, Home Use, Energy &Amp; Mining, Advertising Company
Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets): United States, Germany, Brazil, Indonesia, Mexico, Thailand, Australia, Argentina
Showroom location (in which countries are there sample rooms overseas): Brazil, Indonesia, Mexico, Thailand, Argentina, Uae, Sri Lanka, South Africa
status: New
place of origin: China
use: Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer
degree of automation: Semi-Automatic
Printing color number and surface number: Single Color
warranty period: 1 Year
Core selling point: Easy To Operate
Marketing type: Ordinary Product, New Product 2019
Mechanical test report: Provided
Video factory inspection: Provided
Core component warranty period: 1 Year
Core components: Plc, Engine
Table Size: 300*500mm
包装: 木製ケース
生産高: 20 Sets/month
ブランド: KC
輸送方法: Ocean
原産地: ドンググアン
についてのサポート: 100 Sets/month
認証 : CE Certificate
ポート: Shenzhen,Guangzhou,Hongkong

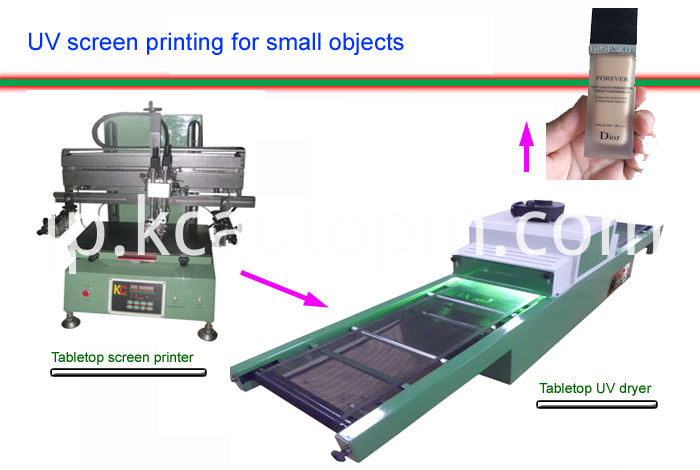

T-Slotワークテーブル付きのテーブルトップスクリーンプリンター
デスクトップフラットスクリーン印刷機の縮小バージョンは、市場へのわずかな投資でスクリーン印刷処理の分野でユーザーのニーズを満たすように設計されています。フラットスクリーン印刷機のすべての機能がありますが、価格は非常に低く、ほぼすべてのフラット製品を印刷できます。
シャーシがなく、テーブルで操作できます。空気圧制御を使用し、空気圧縮機の追加購入が必要です。また、吸引テーブルとT-Slotテーブルで設置することもできます。吸引テーブルは、紙とフィルムの印刷に使用されています。T溝テーブルは、3次元の射出成形製品の印刷に適しています。
精度の点では、その印刷領域は小さく、その精度はほとんどの製品に完全に適しており、上下に画面を制御するためにリニアガイドレールを使用すると考えられており、基本的に色登録の要件を満たすことができます。

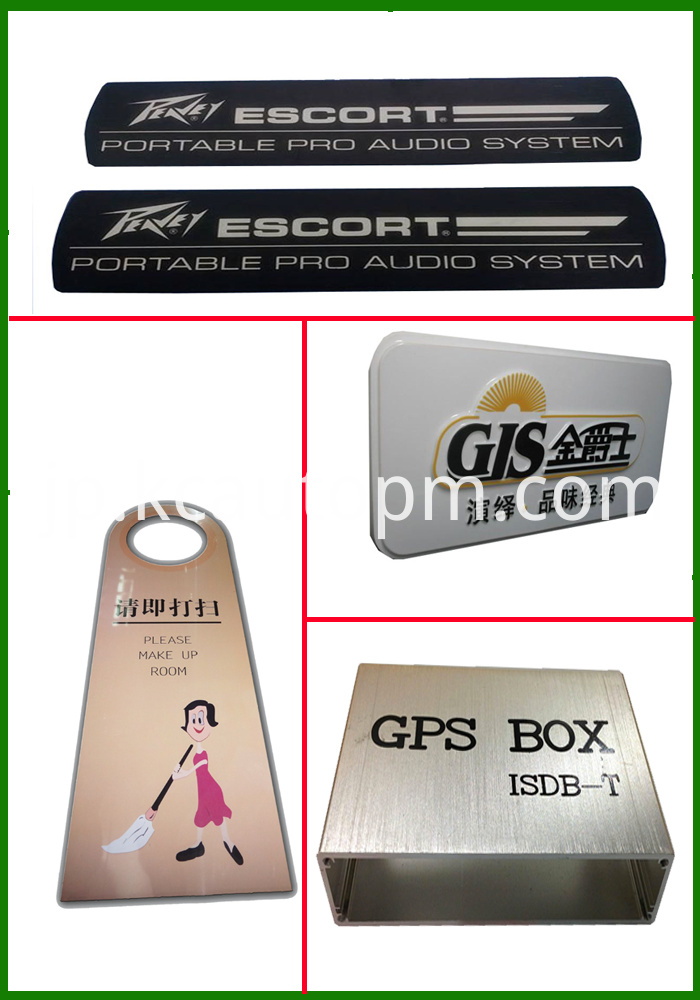

サンプル解決
テストケース
データ
ST-3050PT is a table top pneumatic screen printer with T-grove worktable.Pneumatic screen printing machine Use: glass, paper, wood, plastic, pieces and other small flat material high-precision flat screen printing.
Flat screen printing machine Guide
-
T-Groove table to facilitate the production of injection , suitable for Plastics parts etc.
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
Ruber squeegee and screen rame controller by High precision liner guide rial.
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
Application
The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case
Parameters
-
Max printing thickness: 150 mm;
-
Air consumption: 60Litre/Min;
-
Dimension of working table: 300×500mm;
-
Max printing areas: 290×490mm;
-
Max printing speed: 1000Pcs/H;
-
Max frame dimension: 500×750mm;
-
Compress air: 5-7 bar;
-
Stroke of cylinder up and down:125mm;
-
Stroke of Squeegee: 500mm;
-
Table Precision: 0.05mm;
-
Rang adjustment of table: 10mm
Advantage
-
T-Groove table to facilitate the production of injection , suitable for All rigid and Plain products.Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
|
製品グループ : スクリーン印刷機 > テーブルトップスクリーンプリンター
