T-Slotを備えた低コストのフラットテーブルトップスクリーンプリンター
単価: USD 1350 / Bag/Bags
Min.Order |
単価 |
1 Bag/Bags |
USD 1350 / Bag/Bags |
お支払い方法の種類: L/C,T/T
Terms of Trade: FOB,CIF
最小注文数: 1
単価: USD
モデル:ST-2030PT
印刷版の種類: スクリーン印刷機
該当する業界: 家庭での使用, エネルギーと鉱業, 工事, 広告会社, 印刷店
保証対象外のサービス: ビデオテクニカルサポート, フィールドメンテナンスおよび修理サービス, オンラインサポート, スペアパーツ
ローカルサービスを提供する場所(海外のサービスアウトレットがある国): インドネシア, 日本, パキスタン, マレーシア, インド, オーストラリア, メキシコ, モロッコ
ショールームの場所(海外にサンプルルームがある国): スペイン, チリ, タイ, アラブ首長国連邦, モロッコ, コロンビア, ケニア, アルジェリア
状態: 新着
原産地: 中国
使用する: ペーパープリンター, 布プリンター
自動化の程度: 半自動
色番号と表面番号の印刷: 単色
保証期間: 1年
コアセールスポイント: 長い耐用年数, 高い正確性, 高い生産性
マーケティングタイプ: ホット製品2019, 普通品
機械試験レポート: 提供
ビデオ工場検査: 提供
コアコンポーネントの保証期間: 1年
コアコンポーネント: ポンプ
Type: Vertical Screen Printing Machine
Style: Screen-process Printing Press
Structure: Platen Press
Color & Page: Single-Colour Printing Press
Application: Packaging Printing
Objects To Be Printed: Paper
包装: 木製ケース
生産高: 100 Sets/month
ブランド: KC
輸送方法: Ocean
原産地: ドンググアン
についてのサポート: 20 Sets/month
認証 : CE Certificate
ポート: shenzhen,guangzhou,Hongkong
サンプル
デスクトップフラットスクリーン印刷機の縮小バージョンは、市場へのわずかな投資でスクリーン印刷処理の分野でユーザーのニーズを満たすように設計されています。フラットスクリーン印刷機のすべての機能がありますが、価格は非常に低く、ほぼすべてのフラット製品を印刷できます。
シャーシがなく、テーブルで操作できます。空気圧制御を使用し、空気圧縮機の追加購入が必要です。また、吸引テーブルとT-Slotテーブルで設置することもできます。吸引テーブルは、紙とフィルムの印刷に使用されています。T溝テーブルは、3次元の射出成形製品の印刷に適しています。
精度の点では、その印刷領域は小さく、その精度はほとんどの製品に完全に適しており、上下に画面を制御するためにリニアガイドレールを使用すると考えられており、基本的に色登録の要件を満たすことができます。
ST-2030PT Flat screen printing machine with vacuum table //Guide
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
ST-2030PT Flat screen printing machine with vacuum table //Application

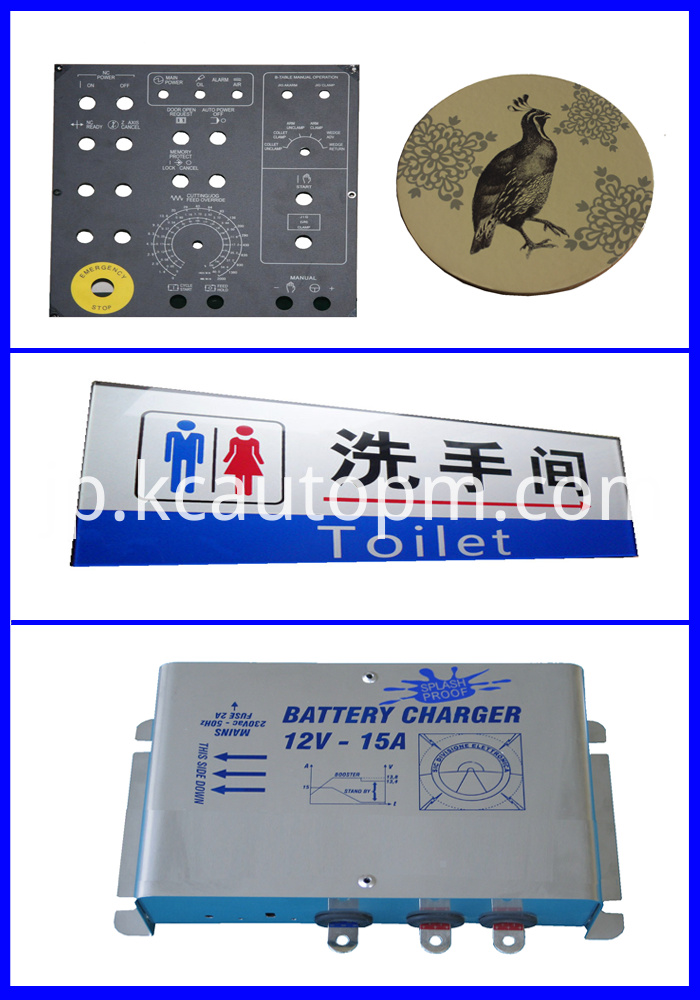

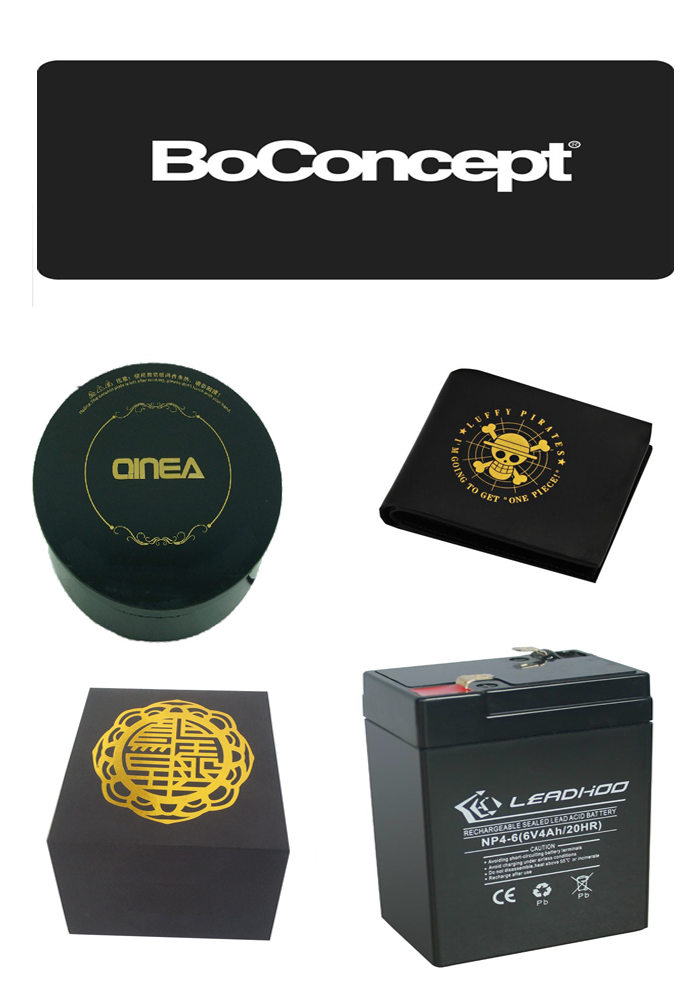

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case
ST-2030PT Flat screen printing Machine with vacuum table//Parameters
-
Max printing thickness: 150 mm;
-
Air consumption: 60Litre/Min;
-
Dimension of working table: 200×300mm;
-
Max printing areas: 190×290mm;
-
Max printing speed: 1000Pcs/H;
-
Max frame dimension: 320×470mm;
-
Compress air: 5-7 bar;
-
Stroke of cylinder up and down:125mm;
-
Stroke of Squeegee: 300mm;
-
Table Precision: 0.05mm;
-
Rang adjustment of table: 10mm
ST-2030PT Flat screen printing Machine with vacuum table //Advantage
-
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
-
Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
-
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
-
Screen forme Clamping device free to adjust to fit different sizes of screen;
-
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
-
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
-
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
-
Microcomputer program control operations;
-
4-Digit auto counter; to facilitate the measurement of production efficiency.
|
製品グループ : スクリーン印刷機 > テーブルトップスクリーンプリンター
